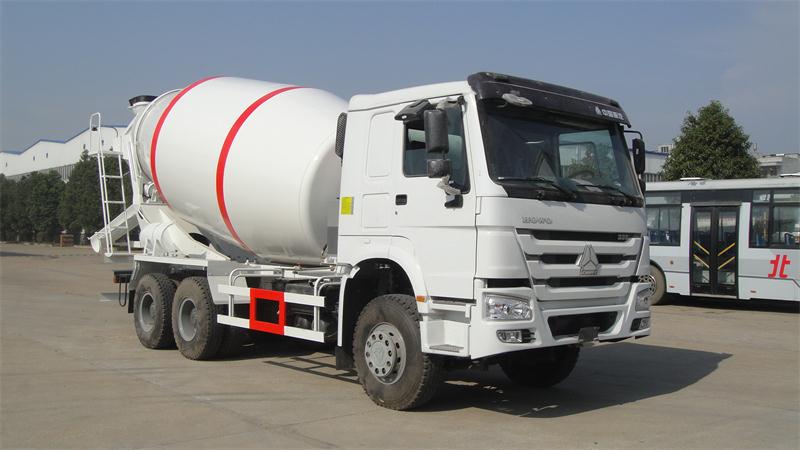

- Sinotruk 6x4 concrete mixer truck
-
The Simple Parameters Product name Sinotruk 6x4 concrete mixer truck Chassis Model /Manufacturer ZZ1257N4047D1 / Sinotruk company Overall Dimension（Length×Width×Height） 9480×2496×3850(mm) Total Mass Appro 25000(kg) Max Payload Appro 10740(kg) Curb Weight Appro 14130(kg) Engine 340hp driving type 6x4 Type & Size of Tyre 12.00-20 16PR,12.00R20 14PR Wheel Base 4025+1350(mm) Max Speed 78(km/h) Volume of tank 10-12m³ The Special Feature Description Adopting plow structure, double helical surface blades, using different blade in different conic part, improved the quality of concrete, tank body with small angle of inclination in installing, reducing the height of center of gravity of the entire vehicle, good driving stability, moreover, smaller angle of inclination is more favorable for dry concrete discharge, reducing residual ratio. feed hopper, discharge chute can be rotated 180 degrees in the horizontal direction, so that it can adapt to different discharge position. FOB price / CIF price
