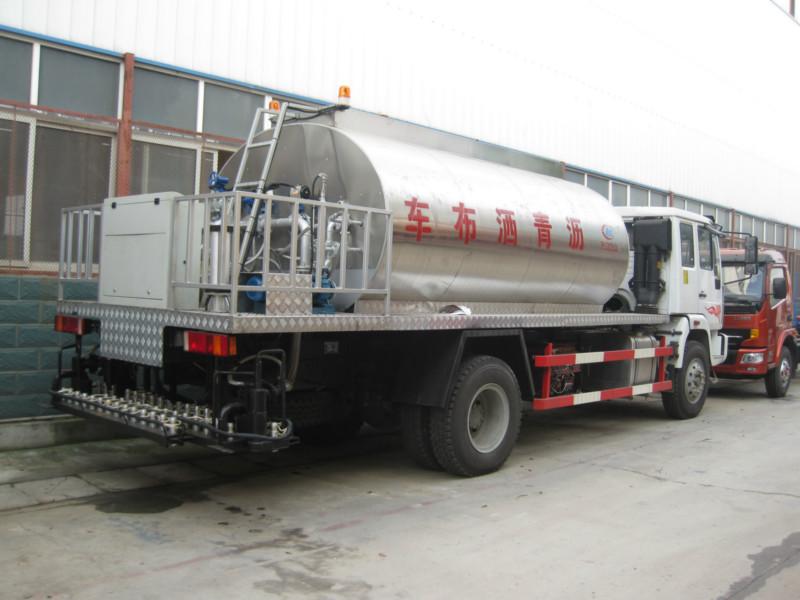

- Dongfeng Tianjin 4x2 Asphalt distributor truck
-
The Simple Parameters Product name Dongfeng Tianjin 4x2 Asphalt distributor truck Chassis Model /Manufacturer DFL1160BX5 / Dongfeng company Overall Dimension（Length×Width×Height） 8590,8790×2480×2840(mm) Total Mass Appro 16000(kg) Max Payload Appro 6405(kg) Curb Weight Appro 9400(kg) Engine 180hp , 185hp , 210hp driving type 4x2 Type & Size of Tyre 10.00-20,10.00R20,9.00-20,9.00R20 Wheel Base 4700,4500(mm) Max Speed 90(km/h) Volume of tank 10m³ The Special Feature Description Sprinkler rubber ashpalt , rubber power content is under 10% , pipes all heat conduction oil insulation , Germany imported PLC control system . The burner is imported from Italy . Spilling content is 0.2-2L/㎡ .
1. Intelligent asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.
2. The whole asphalt spraying process can be finished in the cab.
3. Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4. The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5. The computer control system adopts modular design for lower accident rate and maintenance.
6. The temperature of asphalt in tank is kept below or equal to two degrees per hour.
7. The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank.
8. The machine is also equipped with spray gun device to add asphalt at the opposite corner.
9. Asphalt pump, nozzle and asphalt tank can be heated with heat transfer oil completely or separately.
10. The safe and reliable heat transfer oil heating system is controlled automatically.
